Reducing drift at higher volume rates with new HARDI NANODRIFT nozzles

22.04.2022 – ENGLISH

90% drift reduction according to German tests

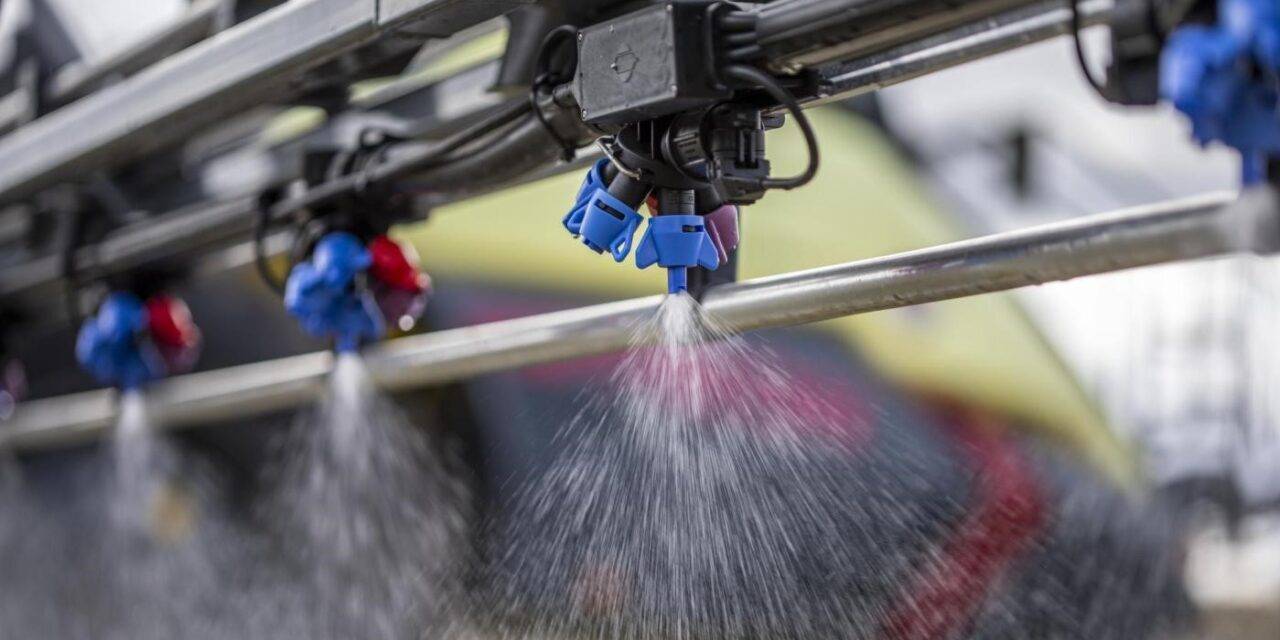

The newly developed HARDI NANODRIFT air injection nozzle is a revolutionary design, with test results by the JKI institute in Germany showing a 90% drift reduction. By dramatically reducing drift at higher wind speeds, HARDI NANODRIFT can significantly reduce environmental impact.

Reducing the need for changing nozzles

By working at a pressure range from 1.0 – 6.0 bar, the nozzle allows the farmer to operate within a wide range of spraying speeds. This means a reduction in work hours by alleviating the frequent need to change nozzles while in the field.

The unique single jet design minimises the risk of dirt blockage while being easy to clean from the top of the nozzle. With the colour tip option, the one-unit handling will ease the mounting and demounting of the nozzle. This single jet design also allows the nozzle to be operated on both TWIN and conventional boom systems.

The compact design of the HARDI NANODRIFT nozzle ensures that it is completely protected by the booms’ steel or aluminium structure.

A nozzle for all sprayer brands

The HARDI NANODRIFT nozzle fits precisely in the HARDI ISO nozzle cap, allowing the new design to be fitted on most field sprayers sold today. This means that the design is available to a wider range of farmers looking to improve drift reduction.

JKI Approvals

NANODRIFT 02: Approved at 1.5 to 6.0 bar for a maximum drift reduction of 75%
NANODRIFT 025: Approved at 1.0 to 6.0 bar for a maximum drift reduction of 90%
NANODRIFT 03: Approved at 1.0 to 6.0 bar for a maximum drift reduction of 90%
NANODRIFT 04: Approved at 1.0 to 6.0 bar for a maximum drift reduction of 90%*
NANODRIFT 05: Approved at 1.0 to 6.0 bar for a maximum drift reduction of 90%
* 90% drift reduction approval expected later this year.
